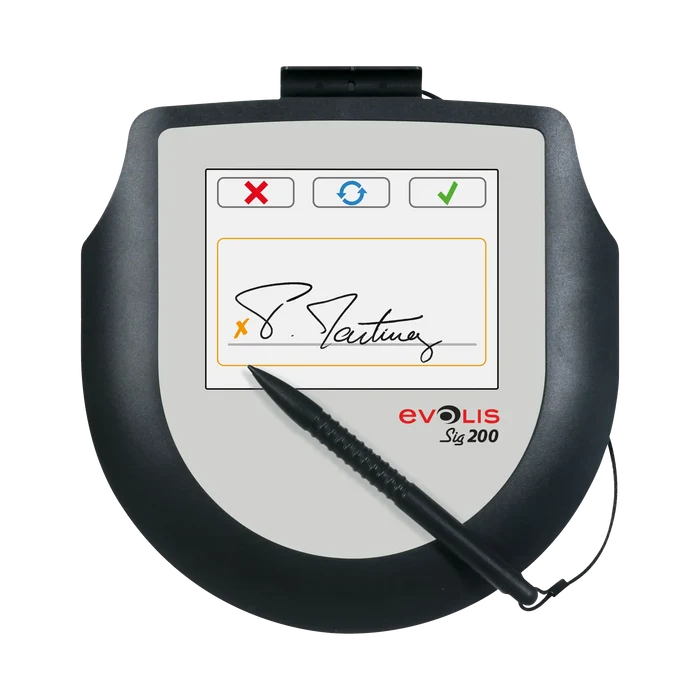

A digital signature pad with a stylus is shown. The screen displays a signature and buttons for accepting, rejecting, and resetting the signature. Labeled "Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL," this ergonomic signature solution offers efficient and precise signing capabilities.

Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL

$216.00
$216.00 $288.00
Skip to product information
A digital signature pad with a stylus is shown. The screen displays a signature and buttons for accepting, rejecting, and resetting the signature. Labeled "Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL," this ergonomic signature solution offers efficient and precise signing capabilities.
  • A digital signature pad with a stylus is shown. The screen displays a signature and buttons for accepting, rejecting, and resetting the signature. Labeled "Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL," this ergonomic signature solution offers efficient and precise signing capabilities.

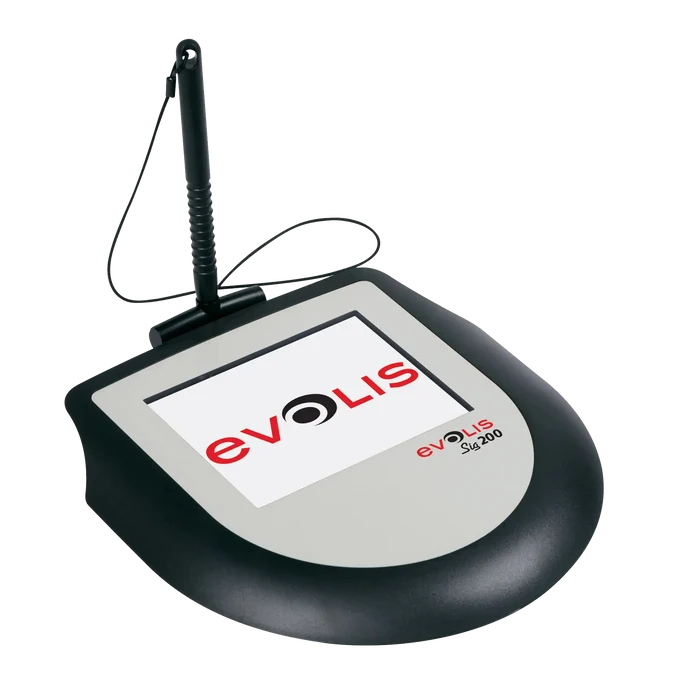

  • This image shows an Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL, an ergonomic signature solution featuring an attached stylus and a screen displaying the Evolis logo.
  • A digital signature pad with a stylus is shown. The screen displays a signature and buttons for accepting, rejecting, and resetting the signature. Labeled "Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL," this ergonomic signature solution offers efficient and precise signing capabilities.
  • This image shows an Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL, an ergonomic signature solution featuring an attached stylus and a screen displaying the Evolis logo.
Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL

Evolis Sig200 Signature Capture Pad ST-CE1075-2-UEVL

$216.00
$216.00 $288.00

The Evolis Sig200 (ST-CE1075-2-UEVL) is the large-format signature pad in the Evolis range, built around a 5 in (12.8 cm) full-color TFT display running 640 x 480 pixels (161 x 161 ppi) with 65,536 colors and a configurable LED backlight rated at 250 cd/m2. The active signing area is 100 x 75 mm at 4096 x 4096 points (1388 x 1040 ppi) with 1024 pressure levels, sampled at 500 Hz externally across four axes and 6000 Hz internally. The unit measures 180 x 191 x 15 mm and weighs about 320 g (0.70 lbs) including the cable, connects over HID-USB or WinUSB with a 2 m cable and is USB powered. Data transfer is AES-256 encrypted using a 4096-bit RSA key exchange, with RSA signature and encryption performed in the pad. The pad carries CE, FCC and RoHS compliance, IP52 protection, support for Windows 10 and later, Windows Server 2016 and later, Linux, Windows Remote Desktop and Citrix ICA (Remote Desktop and Citrix ICA require Evolis's chargeable VCOM driver), and a 2-year warranty with a life expectancy of roughly 1 million signatures.

Choose the Sig200 over the 4 in monochrome Sig100 when the counter or desk position needs the larger color screen, whether that is to give the signer more room to write or to put graphics and messages in front of them between transactions. If you want a tempered-glass writing surface and pen-only sensing that ignores a resting hand, the Sig Activ is the alternative; if the signer never needs to see anything on the device, the screenless Sig100 Lite is the least expensive option. Signing uses a battery-less pen with a changeable spring-loaded lead. signoSign/2 is sold separately, and a free SDK, tools and TWAIN driver are available from Evolis.
